Description

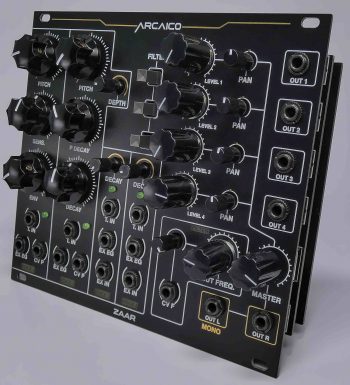

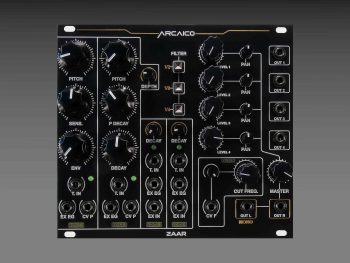

Zaar is a module for creating percussive sounds, bass lines and synths.
4 analog voices, mixer with pan control, filter, stereo output, independent outputs for voice (these outputs are not controlled by pan, filter and level).

Voice1 controls: Pitch control, sensitivity input, envelope
In / out: Gate/Trigger/audio in, external envelope control in, cv pitch, audio out.
When this voice control has an audio input it becomes a filter, calibrated to obtain percussive sounds.

Voice2 controls: Pitch, pitch decay, depth, decay.
In / out: Trigger, external envelope control in, cv pitch, audio out.

Voice3 (White noise) controls: Decay
In / out: Trigger, external envelope control in, external audio input (when an audio input is inserted it becomes a distorted vca).

Voice4 (Pink noise) controls: Decay
In / out: Trigger, external envelope control in, external audio input (when an audio input is inserted it becomes a distorted vca).

Mixer with volume control and pan for single voice
Independent outputs for each voice (these outputs are not controlled by pan, filter and level).

Filter assignable to voice control 2,3,4 and CV control of the frequency.

Stereo output.

35mm deep
28 hp
