Description

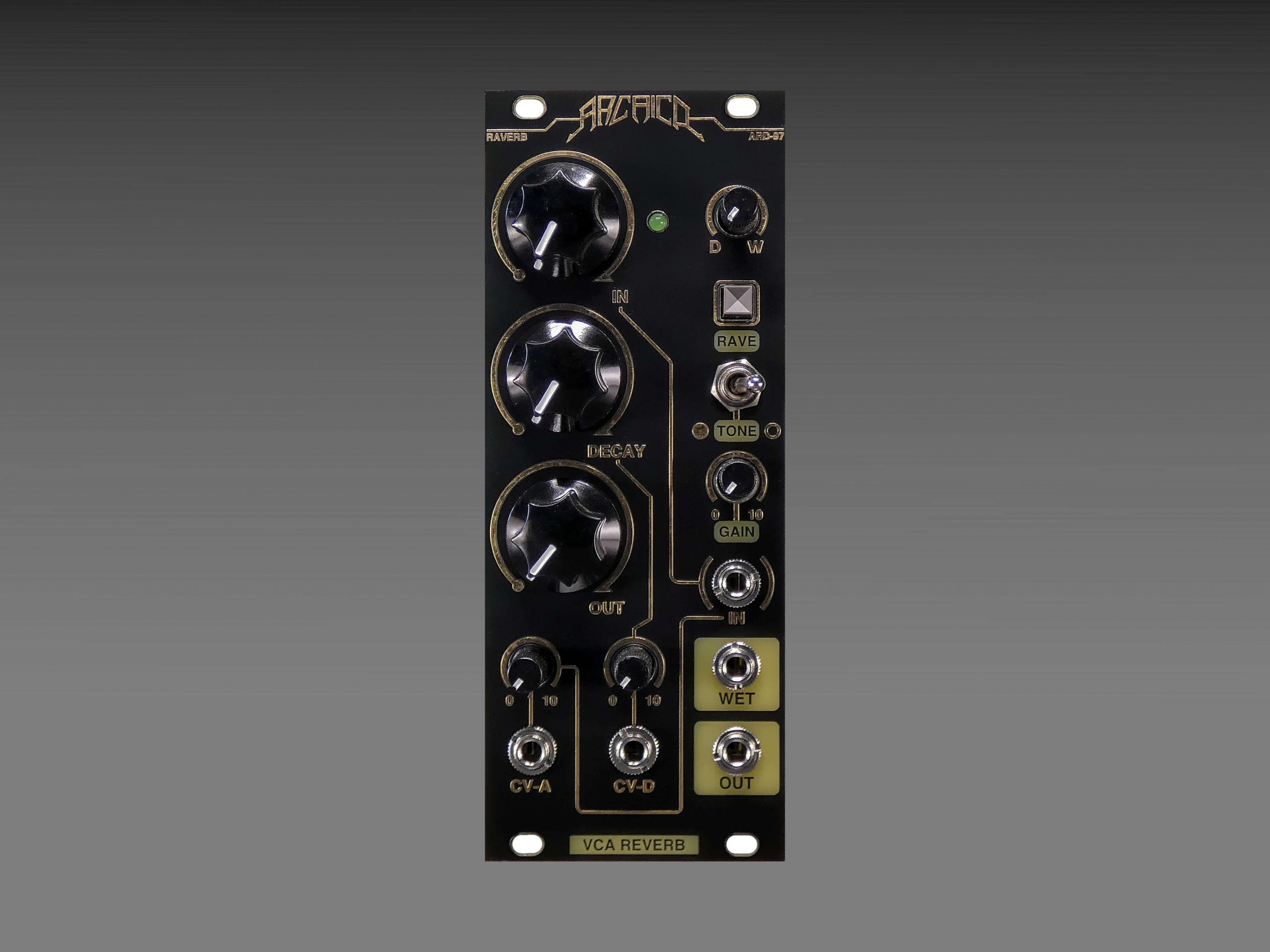

Reverb in eurorack format inspired by the infamous Reverberation Machine, characterized by a VCA input and a post reverb distortion.

The input section is controlled by an integrated VCA.
The TONE switch darkens or lightens the signal.
The Decay, controlled in CV, through LDR resistor allows to create a large reverb: increasing the Decay to maximum level the feedback extends to infinity.
The GAIN control allows to saturate the post-reverb signal.
The RAVE button short-circuits the IN and OUT of the module, so as to obtain an infinite and self-regenerative feedback, creating auto-oscillation of the effect.

10 HP

50 mm deep

60 mA +12V

24 mA -12V
